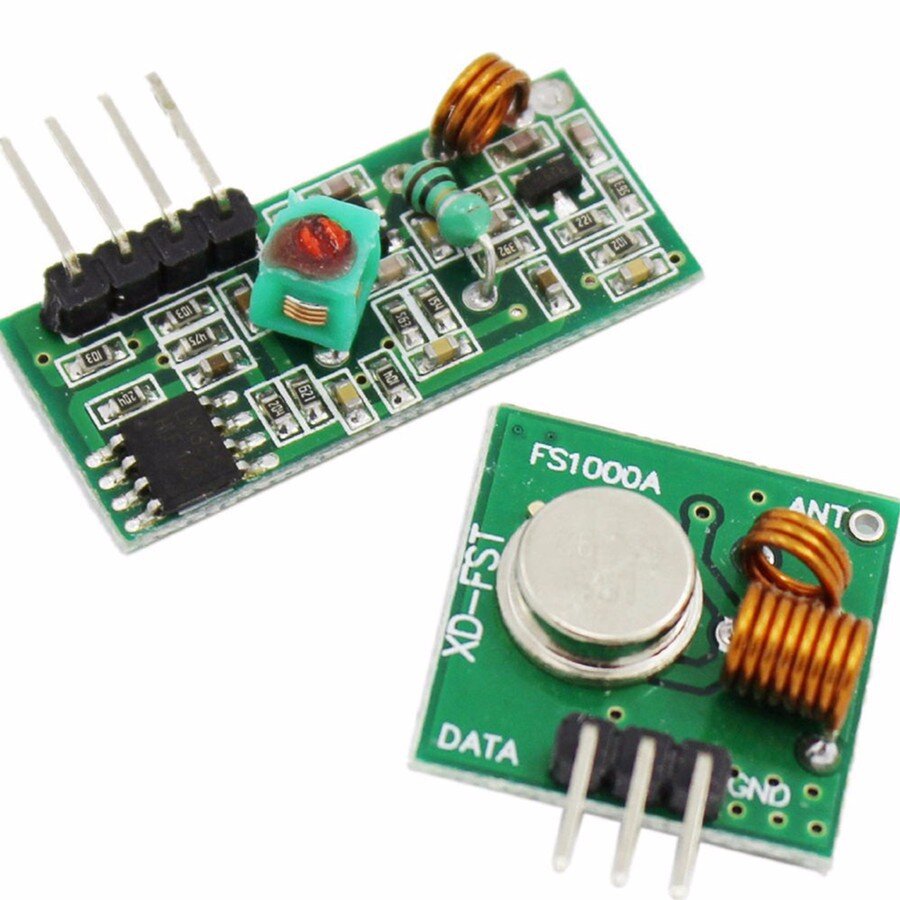

315Mhz Wireless RF Transmitter and Receiver Module

Transmitter head and receiver template Product specifications and operating instructions

Receiver module parameters

Product Model: MX-RM-5V

Operating voltage : DC5V quiescent current: 4MA

Receiving frequency: 433.92MHZ

Receiver sensitivity: - 105DB

Size : 30 * 14 * 7mm external antenna: 32CM single core wire wound into a spiral

Technical parameters of the transmitter head

Product Model: MX-FS

Launch distance: 20 -200 meters (different voltage, different results) Operating voltage: 3.5-12V Dimensions: 19 * 19mm

Ways of working: AM transfer rate: 4KB / S transmit power: 10mW

Transmitting frequency: 433M

An external antenna: 25cm ordinary multi-core or single-core line

Pinout from left → right: ( DATA ; VCC ; GND )

Description:

• Model:MX-05V
• Voltage:DC5V
• Current:4MA
• Frequency:433.92MHZ 315MHZ
• Sensitivity:-105DB
• Antenna:32CM single core wire,heliciform shaped
• Size:30*14*7mm
• Model:MX-FS-03V
• Transmitter distance:20-200Meters(influenced the voltage)
• Voltage:3.5-12V
• Size:19*19mm
• Working mode:AM
• Transmitter speed:4KB/S
• Transmitter power:10mW
• Frequency:433M / 315M
• Attenna:25cm Single core wire or mutil-core wire
• Pin arrangement: left-right(DATA;VCC;GND)
