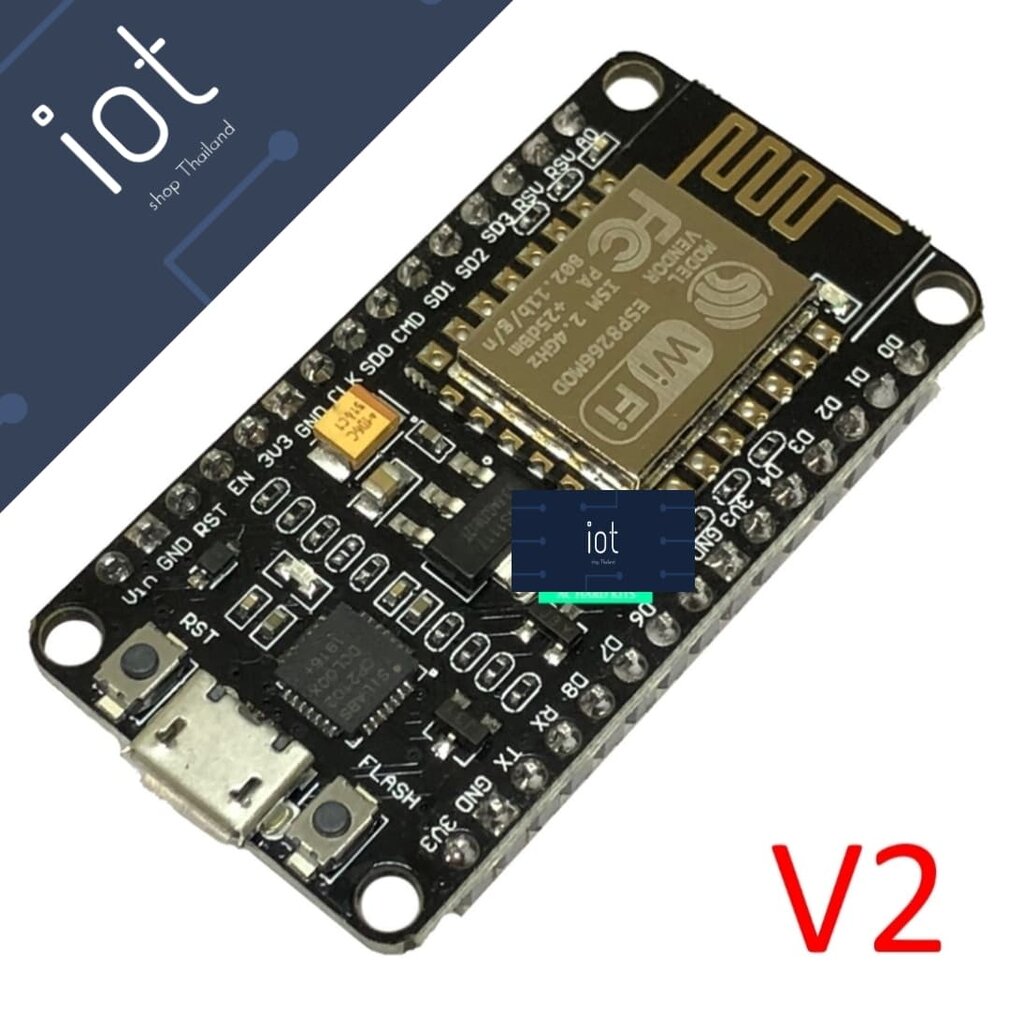

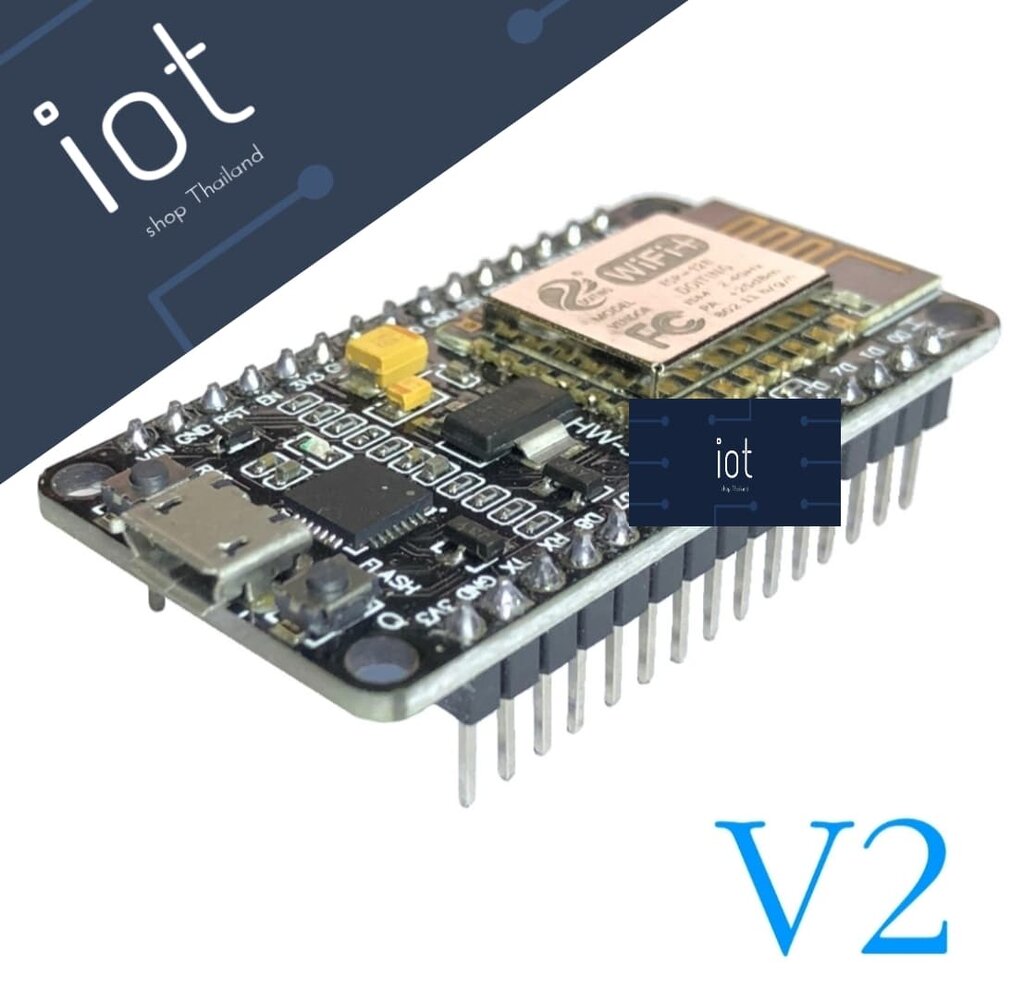

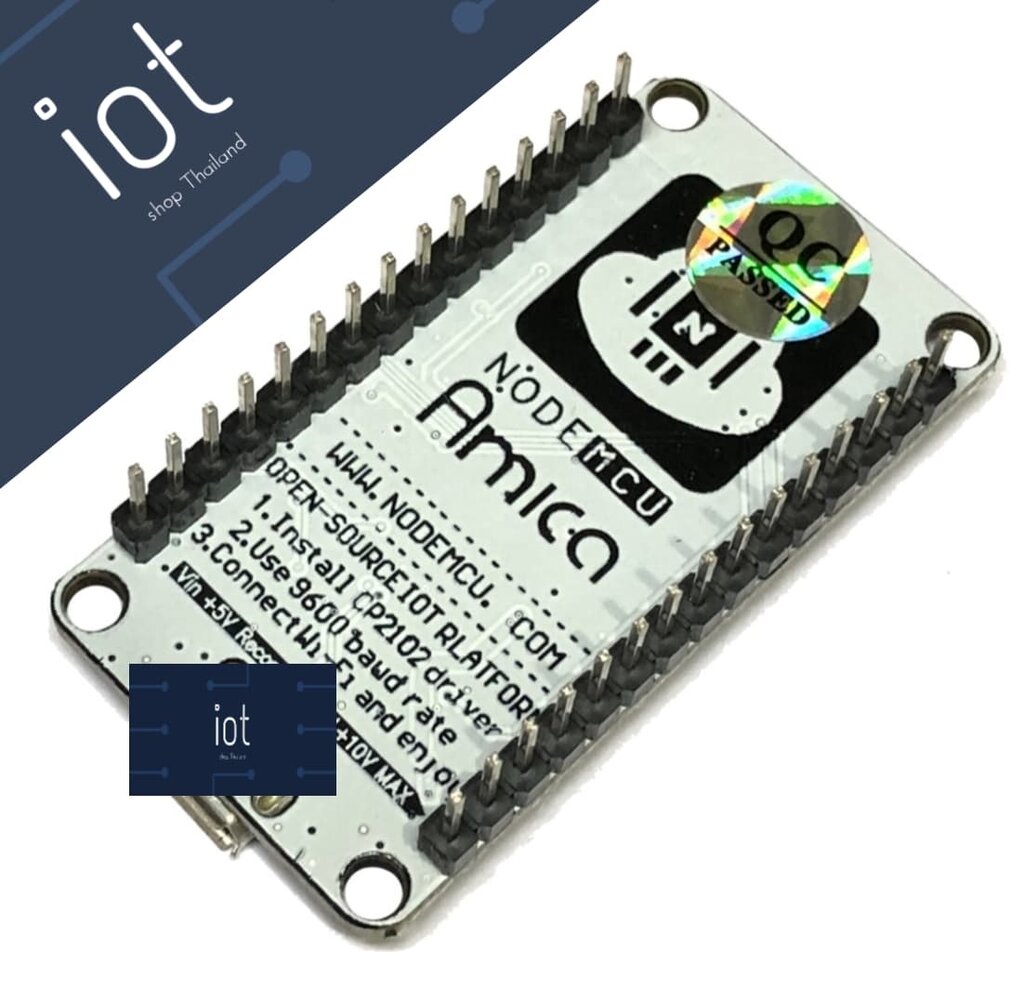

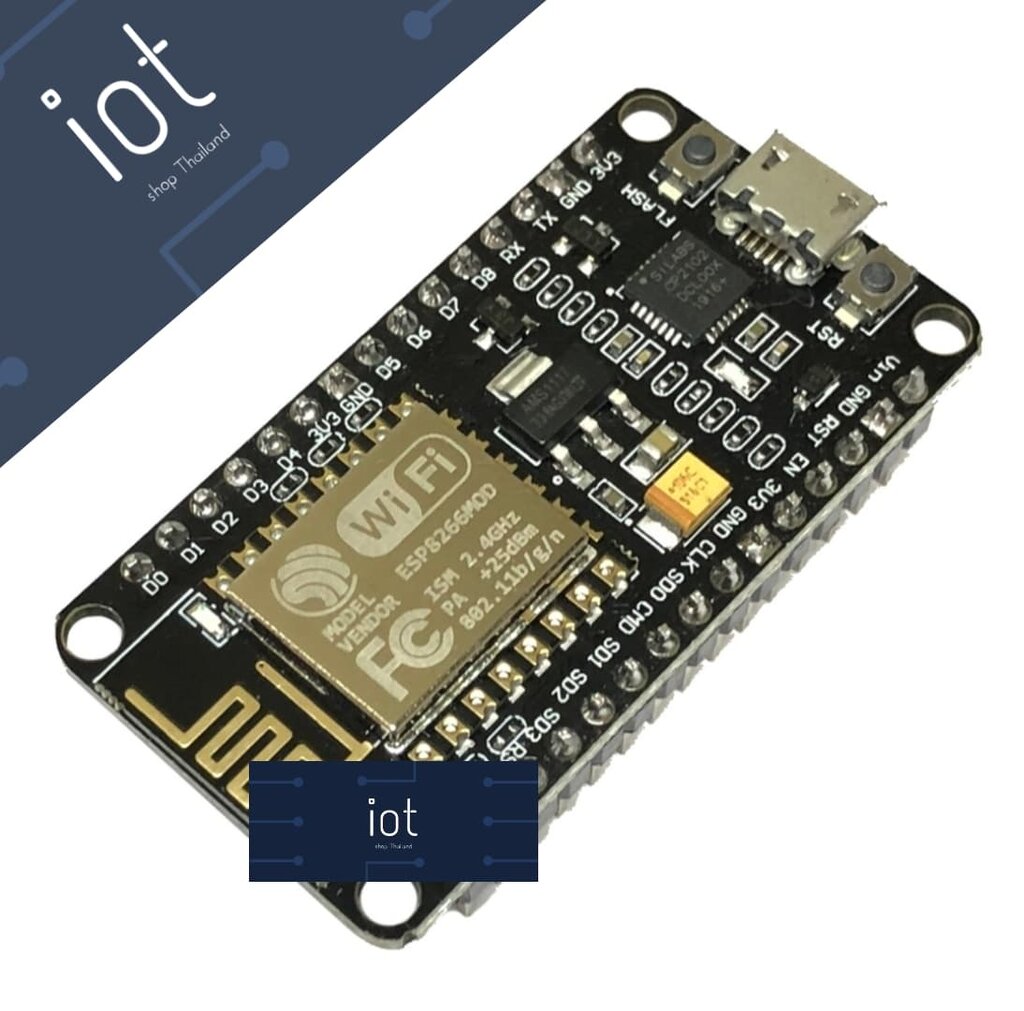

ESP8266 NodeMCU V2 Lua WIFI Networking Development Kit

ESP8266 NodeMCU v2 Lua WIFI networking development kit

Arduino-like hardware IO

Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware. Code like, but interactively in Lua script.

Nodejs style network API

Event-driven API for network applicaitons, which faciliates developers writing code running on a 5mm*5mm sized MCU in Nodejs style. Greatly speed up your IOT application developing process.

1. NodeMcu Lua WIFI Internet of Things development

board based ESP8266 CP2102

2. ESP8266 full IO mouth leads directly download without

resetting! ESP8266 developed a great set of tools!

3. Download visit the official website: http://www.nodemcu.com

Device Summary

• Microcontroller: Tensilica 32-bit RISC CPU Xtensa LX106

• Operating Voltage: 3.3V

• Input Voltage: 7-12V

• Digital I/O Pins (DIO): 16

• Analog Input Pins (ADC): 1

• UARTs: 1

• SPIs: 1

• I2Cs: 1

• Flash Memory: 4 MB

• SRAM: 64 KB

• Clock Speed: 80 Mhz

• Wi-Fi: IEEE 802.11 b/g/n:

  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • WEP or WPA/WPA2 authentication, or open networks

ข้อมูลเพิ่มเติม ESP826ุ6 NodeMCU v2 Lua WIFI networking development kit

• nodemcu.com
• https://github.com/nodemcu/nodemcu-devkit
• การใช้งานบอร์ด NodeMcu
• Ayarafun ESP8266 Thingspeak
