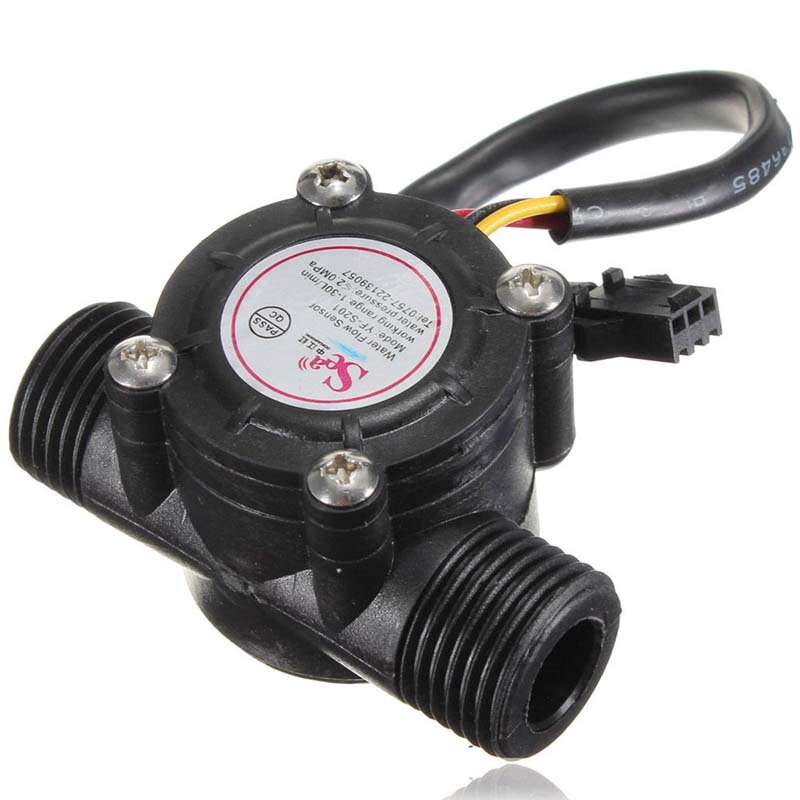

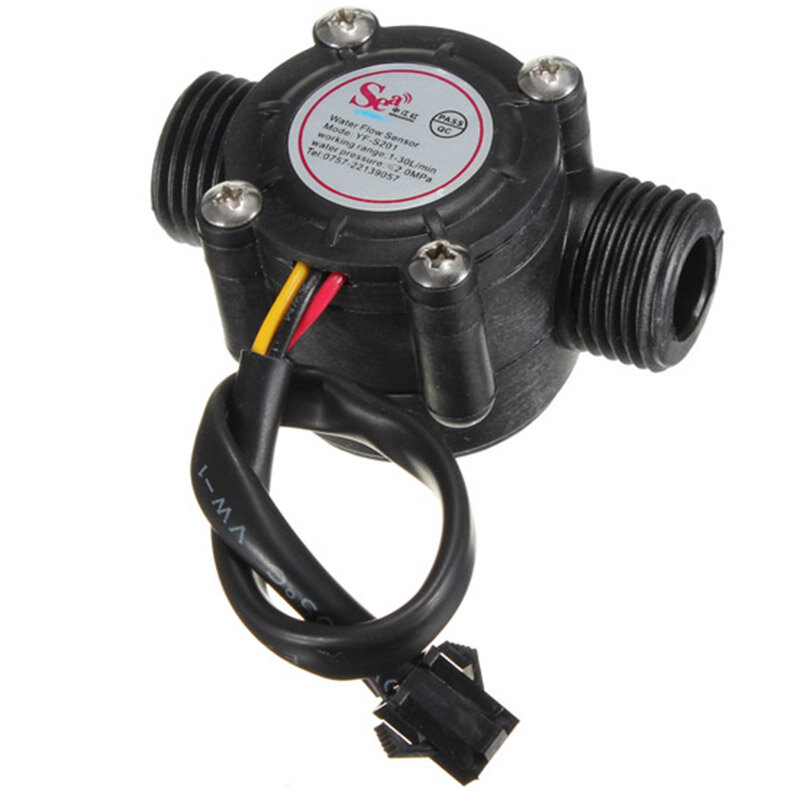

Water Flow Sensor 1/2'' Flowmeter Hall Flow Sensor Water Control 1-30L/min

Features:

• Mainly used for water testing, water cooling system

• Application: Water heaters, credit card machines, water vending machine, flow measurement device


• High amplitude: ≥ 4.6V

• Low amplitude: ≤ 0.5V

• Electric strength: 1250V/min

• Insulation resistance: ≥ 100MΩ

• Hydrostatic pressure testing: ≤ 2.0Mpa



Specification:

• The lowest rated working voltage: DC4.5 5V-24V

• Maximum operating current: 15mA (DC 5V)

• Working voltage range: DC 5~18V

• Load capacity: ≤ 10mA (DC 5V)

• Use temperature: ≤ 80°C

• Operating humidity range: 35%~90%RH (no frost)

• Allowing pressure: pressure 2.0Mpa

• Temperature: -25 ~ +80 °C

• External threads: 1/2"

• Outer diameter: 20mm

• Intake diameter: 9mm

• Outlet diameter: 12mm

Note: Please allow 1-5mm difference due to manual measurement.
