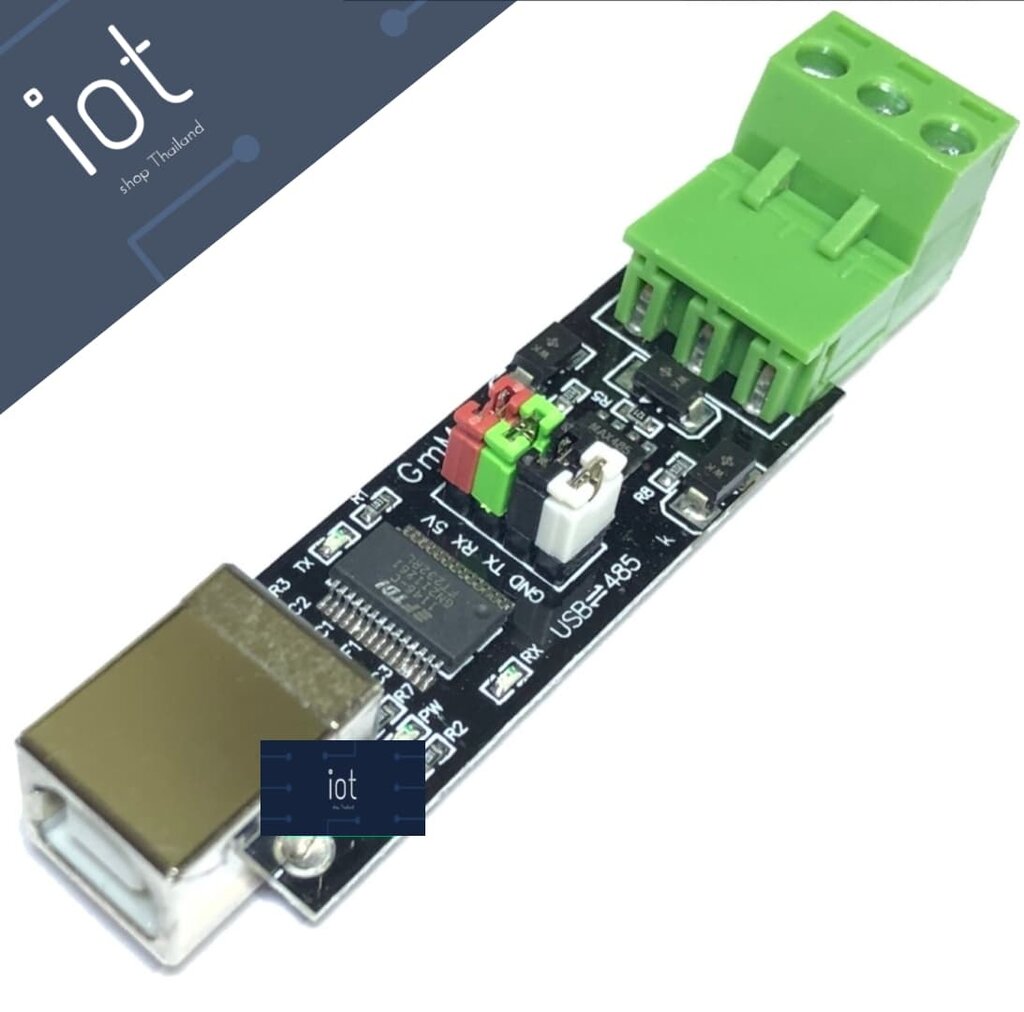

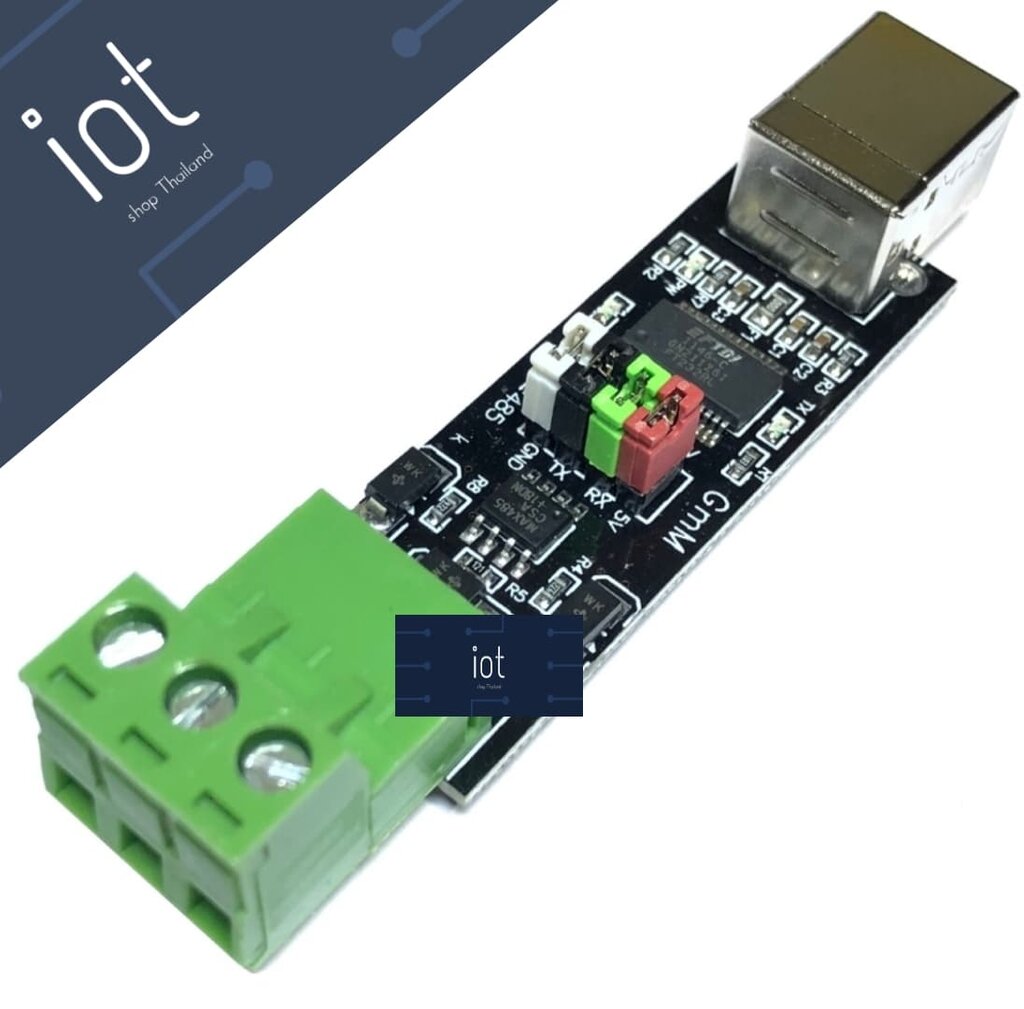

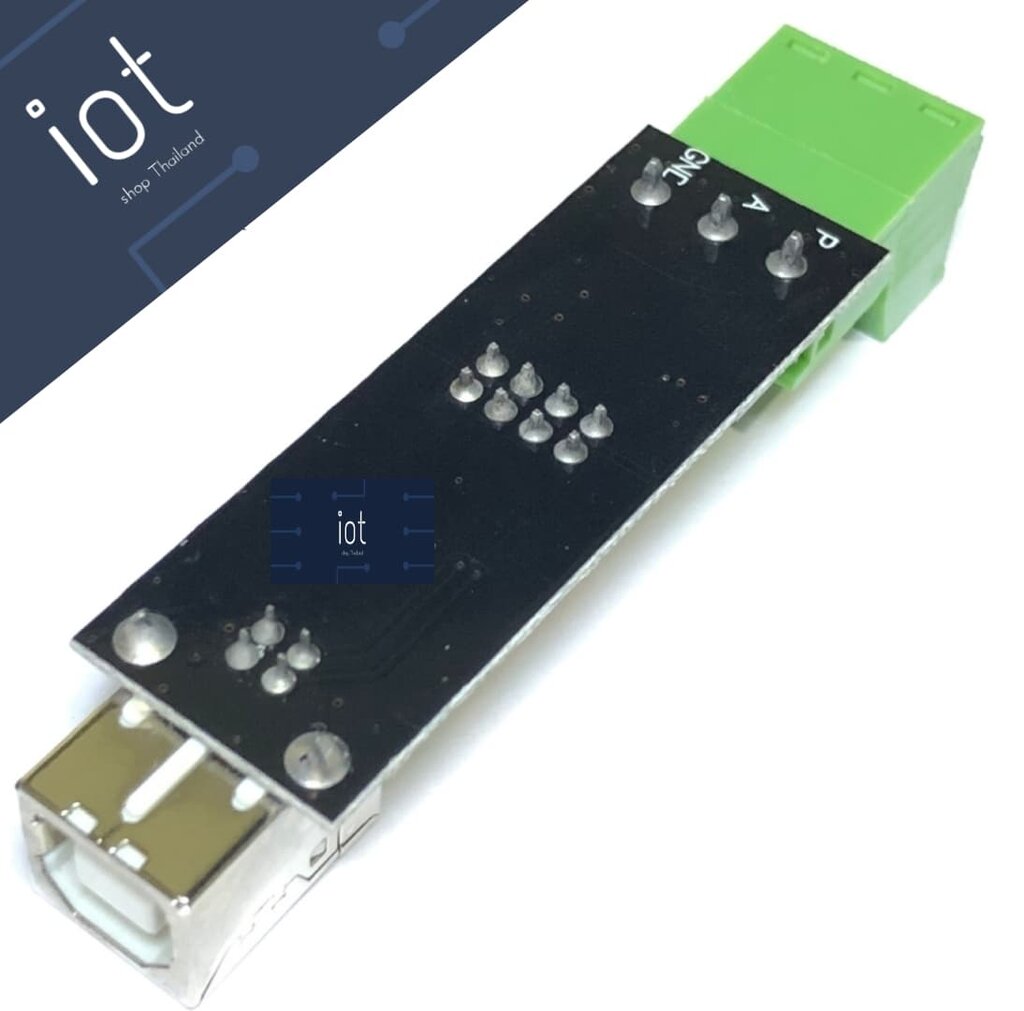

SB 2.0 to TTL RS485 Serial Converter Adapter FTDI Module FT232RL

USB to RS485 TTL Serial Converter

This converter provides two way serial communications signal conversion between the RS485 to and from a personal computer USB port using virtual serial COM port. Self-powered from USB it uses FT232RL+75176 and can have up to 32 devices on the bus.

Specification:

• Standard: USB2.0 standard, backward compatible, in line with the standard RS485
• Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
• Baud: 300-9216000bps, automatically detecting the serial signal data rate
• Load capacity: support multipoint, each converter allows RS485 interface device to connect 32
• Interface Protection: TVS tube protection, USB self-recovery protection
• Support Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac
• Support devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX, CNC machine, microcontroller, etc.
