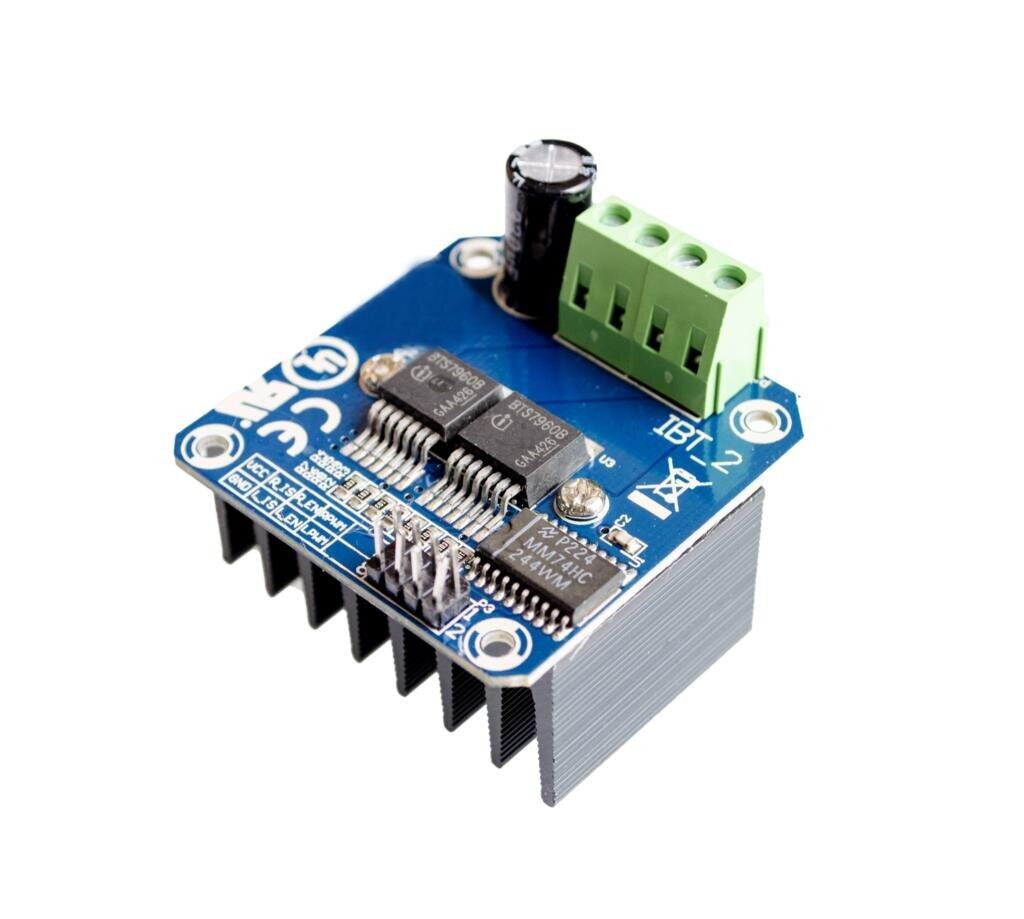

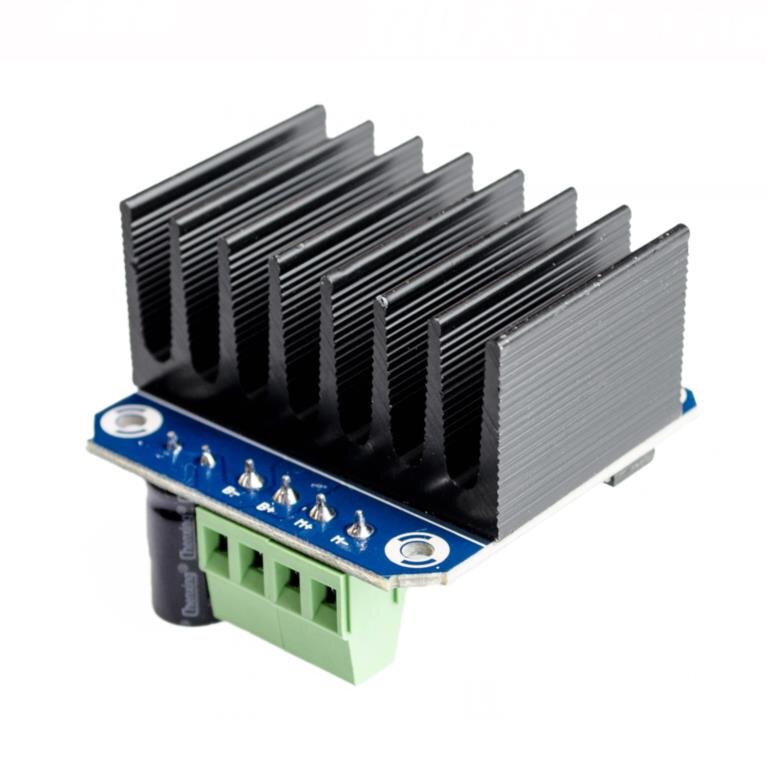

Drive Module 43A BTS7960 43A H-bridge High-power Motor โมดูลขับมอเตอร์สูงสุด 43A

รายละเอียดสินค้า

• Operating Voltage 5.5 to 27V (B+)
• Path resistance of typ. 16 mOhm at 25°C
• Low quiescent current of typ. 7 uA at 25°C
• PWM capability of up to 25 kHz combined with active freewheeling
• Switched mode current limitation for reduced power dissipation in overcurrent
• Current limitation level of 43 A typ.
• Status flag diagnosis with current sense capability
• Overtemperature shut down with latch behaviour
• Overvoltage lock out
• Undervoltage shut down
• Driver circuit with logic level inputs
• Adjustable slew rates for optimized EMI
• 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accepts voltages higher than VCC)

ข้อมูลเพิ่มเติม

• ข้อมูล DataSheet BTS7960 Motor drive chip
• http://www.instructables.com/id/Motor-Driver-BTS7960-43A/?ALLSTEPS
