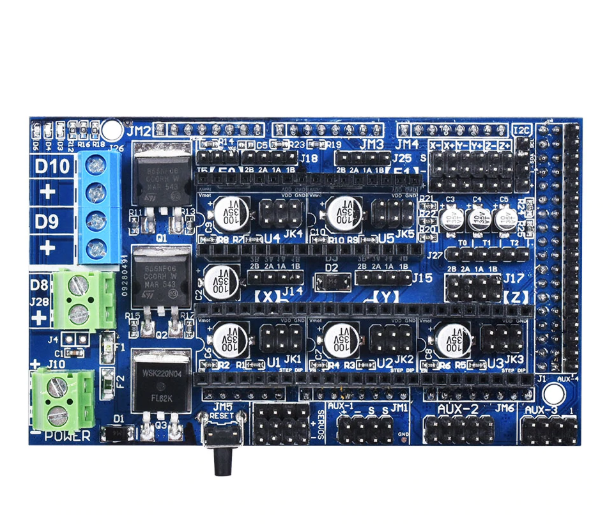

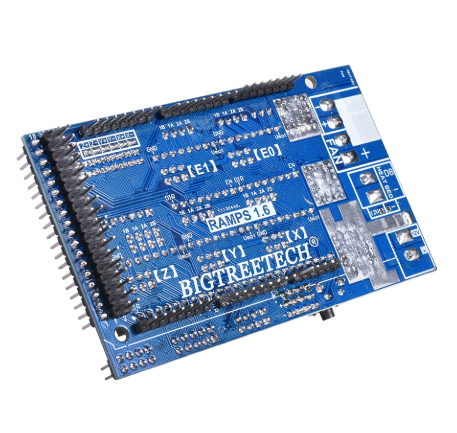

Ramps 1.6 Motherboard Support A4988 DRV8825 TMC2130 Driver Reprap Mendel

Product Parameters:

Size: 101.5 * 60.5mm

Support motor drivers: support A4988 DRV8825 and other motor drivers(support five motor drivers Simultaneously)

Input voltage: 12V

Power: 200W

Patch MOS tube: B55NF06

RAMPS 1.6 is optimized and launched based on Ramps 1.4 & Ramps 1.5 By Biqu

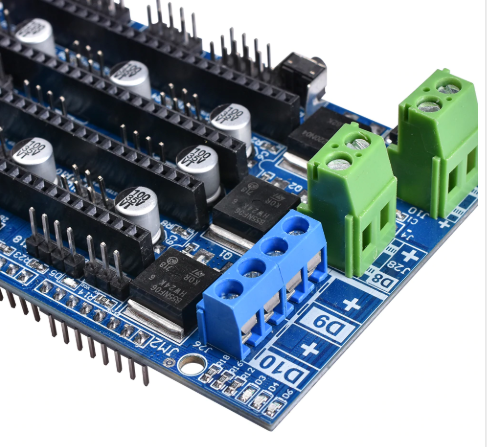

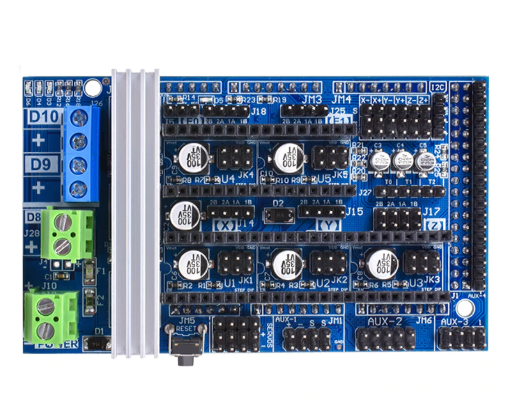

The Struture almost same as Ramps 1.5 , the difference is Ramps 1.6 have new 2pin connectors,which more simple and convenient to connect,also will not be burnt easily,what's more ,Ramps 1.6 have a good Heatsink above MOS tube in order to give a better function to heat dissipation .

Beside, the Power of Ramps 1.6 is more larger than Ramps 1.5, the largest power will be up to or 270W , and Ramps 1.5 just can be up to 200W, or samller than 200W.

note : only with 4 drivers.
