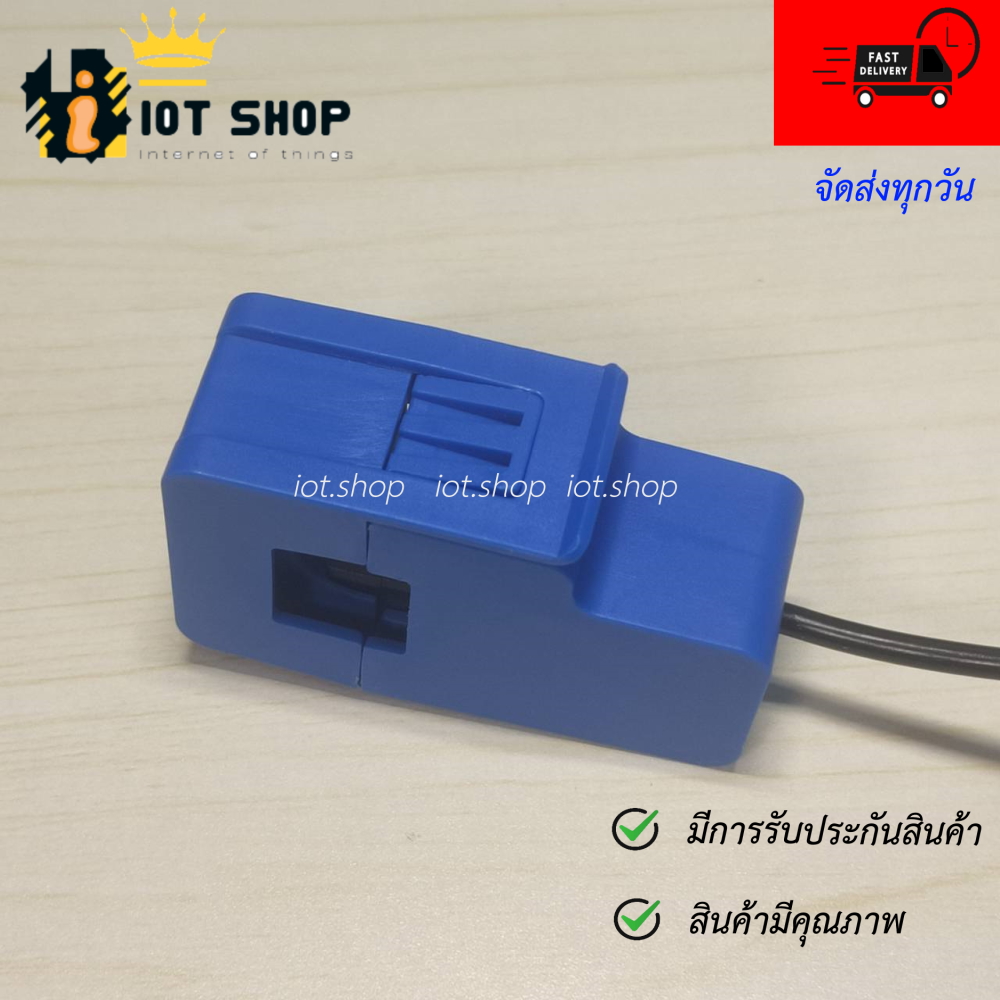

SCT-013 CT 0-100A to 50mA Non-Invasive AC Current Sensor เซนเซอร์ วัดกระแสไฟฟ้า AC แบบครอบ 100A

รายละเอียดสินค้า

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Applications:
Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor

Specifications:
Input Current: 0~100A AC
Output Mode: 0~50mA
Non-linearity: ±3%
Turn Ratio: 100A:0.05A
Resistance Grade: Grade B
Work Temperature: -25°C ~ ﹢70°C
Dielectric Strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Open Size: 13mm x 13mm
